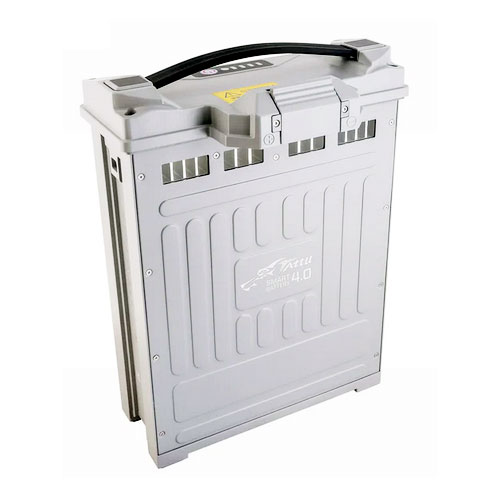

Tattu 4.0 30000mah 53.2V 14S1P 25C High Voltage Lipo

Tattu 4.0 30000mah 53.2V 14S1P 25C High Voltage Lipo Smart Battery Pack with ACES Plug

The Tattu 4.0 14S is a new upgraded generation smart drone battery with optimized plug & play installation, adopts high energy density cell and advanced BMS, specially designed for a heavy payload drones, 30-50L Agricultural drones, supports max 270A continuous discharge current and 5C fast charging with the TA9000 Pro Charger.

Integrates a high-precision BMS with integrated Bluetooth, and provides comprehensive safety features, including Drone CAN protocol accessible, Bluetooth connection function, SOC indication, fault self-diagnosis function, self-balancing, smart storage, Log Storage Function, Cycle statistics function, Software Upgrade Function, automatic charging current adjustment and protection function, ensuring a safe flight every time. The on/off function can prevent sparking when the battery is turned off before connecting any device.

The structure has been comprehensively upgraded to enhance heat dissipation, ensuring efficient cooling. The TATTU 4.0 version eliminates the need for a USB communication, instead integrating a Bluetooth module into BMS. This enables real-time monitoring of battery status and data, providing a seamless human-battery interaction experience. Additionally, the handles have been optimized to improve the overall design and aesthetics, enhancing the sense of style. Furthermore, the upgraded structure effectively reduces the risk of corrosion-related short-circuits caused by exposure to humidity or liquids, thereby enhancing safety and reliability.

By connecting to the Tattu Bluetooth App, users can perform battery software upgrades, and access real-time battery information and historical logs easily.

Specification:

Minimum Capacity: 30000mAh

Configuration: 14S1P

Nominal Voltage: 53.2V

Power: 1596 Wh

Net Weight(±200g): 11500g

Dimensions: 333mm Length x 237mm Width x 92.5mm Height

Discharge Plug: ACES 59615-0149D001

Max Continuous Discharge Current: 180A

Peak Discharge Current: 250A ≤ 3S

Operation Temperature: -20 - 60℃

Charge Temperature: 5~10℃ ≤1C, 10~20℃≤1.5C, 20~60℃≤5C

Discharge Temperature: -20~0℃≤ 0.2C, 0-10℃≤0.5C, 10~60℃≤9C

Please read carefully before using the battery and strictly comply with the requirements on the sticker on the battery surface and in the manual. The battery must be charged using TA9000PRO, we will not be responsible for any consequences caused by using a charger that does not meet the requirements for charging.

Achtung:

Produkt darf nicht über den Hausmüll entsorgt werden sondern ist über den Hersteller oder eine Sammelstelle wie einen Recyclinghof zurückzugeben.
