Vanquish H10 Front Axle Set
Art.Nr.: VPS08800
Hersteller: Vanquish Products
159,00 EUR
inkl. 19 % MwSt
-
verfügbar
- Lieferzeit 1-2 Tage**
- Lagerbestand 3
- Gewicht 0,3 kg
Produktbeschreibung

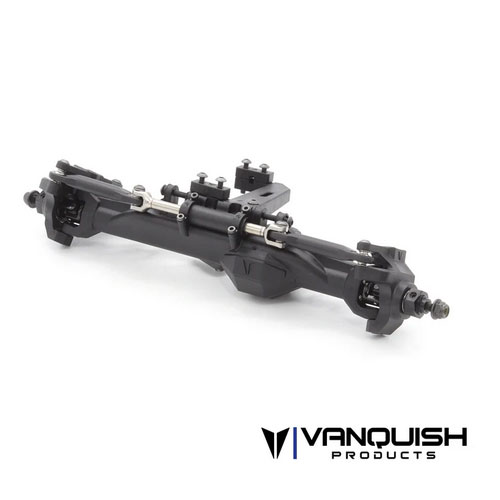

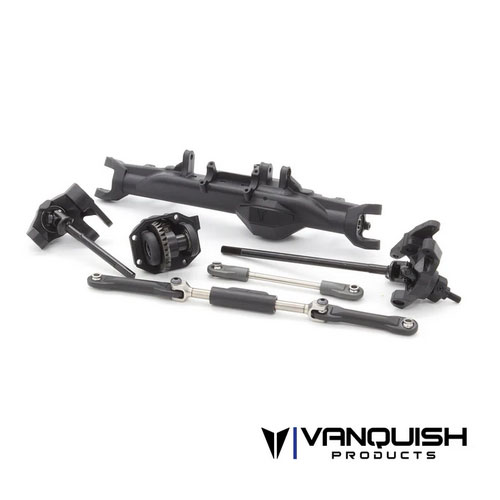

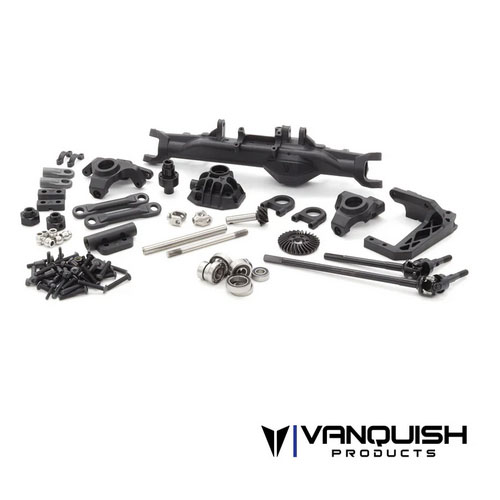

Vanquish H10 Front Axle Set
The H10 axle kit offers a complete axle package that brings performance and style to your build. The plastic molded H10 axles feature an ultra rigid design that is made to run 4-link suspension with the behind the axle servo mount. The simulated hydraulic ram replaces a traditional tie rod and gives the appearance of hydraulic steering like is used on extreme full-size offroad buggies.
H10 Front Straight Axle Set:
206.5mm Hex Face Width (8.13")
Molded Plastic Axle housing
Universal Style Axle Shafts
49 Degrees of Steering
High Caster reinforced C-Hub
High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
6-Bolt Ring Gear and Spool
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
Chromoly universal shafts
Scale removable third member
Note:
Optional lower ratio ring and pinion (8/33) available VPS08331
Compatible with all Vanquish SLW and Incision hubs.
Does not include link mounting hardware
Incision .280" width pivot ball compatible
For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
Compatible with the following:
VPS09010 H10 Optic RTR
